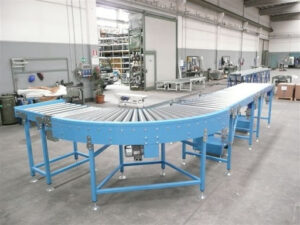

Motorized 90 degree curved roller conveyor

Main features:
• Painted FE carpentry structure
• Steel rollers ∅50mm with PVC plastic conical rings
• Electro-welded tubular support stands with adjustable leveling feet
• Motion transmission with Poly-V or chain toothed belts
• Capacity: min 5 kg – max 1000 kg
• Speed 0.2 – 1.5 m/s
• Powered by gearmotor or electronic card in relation to the flow rate
• 30°/45°/60°/90° deviation angles

Dimensions:
• Standard useful width of 640/840/1040 mm (customizable on request)
• Standard external width 700/900/1100 mm (customizable on request)
• Internal radius R 860 mm
• External radius R 1500/1700/1900 mm

Accessories and options:
• Containment sides
• Predisposition for photocells
